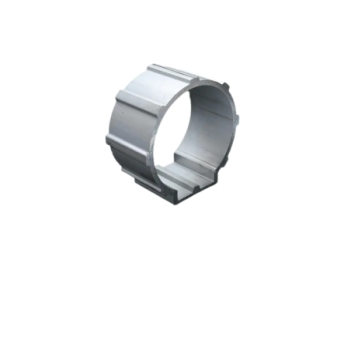

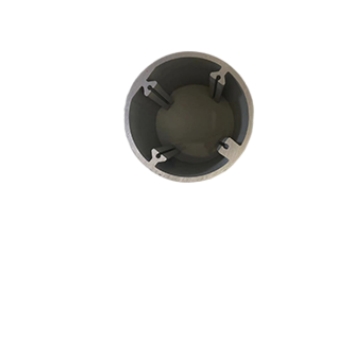

Aluminum Profiles

Brand: 6061, 6063, 6082

Features: It can be strengthened by heat treatment, has medium plasticity in annealing, just quenching and hot state, has good spot welding properties, and has a tendency to form intergranular cracks when using gas welding and argon arc welding, etc.

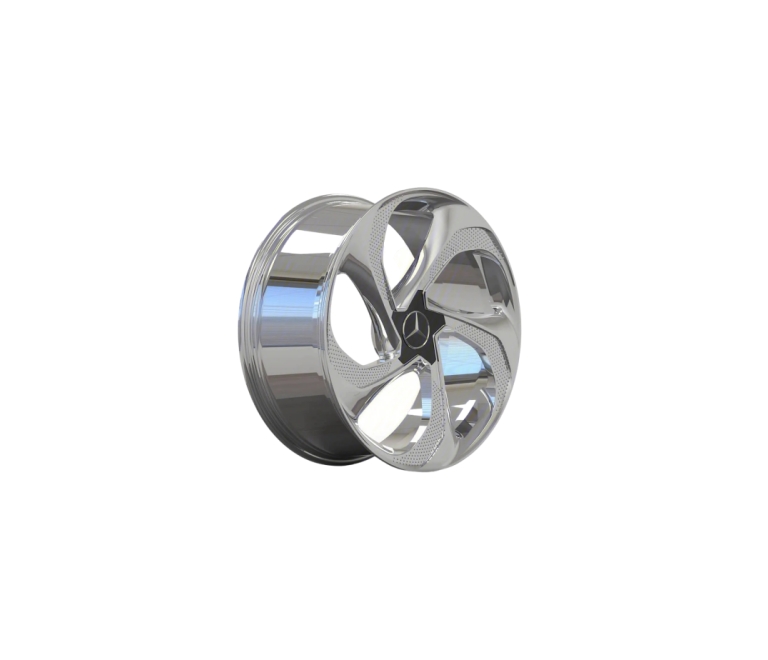

Applications: aircraft structures (skin, frame, rib beam, bulkhead, etc.), aircraft, ships, transportation, rivets, missile components, truck wheels, propeller components, etc.

Special services: nationwide sales, free samples, free door-to-door delivery, customizable with drawings and samples

Share to:

Product Details

3003Aluminum Chemical Composition
Cu	Si	Fe	Mn	Mg	Zn	Cr	Ti	Pb+Bi	Al
0.05-0.2	≤0.6	≤0.7	1.0-1.5	≤0.05	≤0.1	≤0.05	≤0.05	/	Remainder
3003Aluminum Bar Mechanical Properties
Werkstoff-zustand	RmMPa			Rp0,2MPa			A50 mm% min.			HBW Typischer Wert
O/H111	95-135			≥35			≥20%			≥29
F/H112	≥95			≥35			≥20%			≥30
H14	130-165			≥110			≥4%			≥40
H16	160-195			≥130			≥3%			≥47
H18	≥180			≥145			≥2%			≥55
3003Aluminum Tube Mechanical Properties
Werkstoff-zustand	RmMPa			Rp0,2MPa			A50 mm% min.			HBW Typischer Wert
O/H111	95-130			≤35			≥20%			≥29
F/H112	≥95			≥35			≥20%			≥30
H11	105-140			≥55			≥16%			≥32
H12	115-150			≥75			≥12%			≥35
H13	125-160			≥95			≥8%			≥38
H14	130-165			≥110			≥4%			≥40
H15	145-180			≥120			≥4%			≥44
H16	160-195			≥130			≥3%			≥47
H17	170-205			≥140			≥2%			≥51
H18	≥180			≥145			≥2%			≥55
Aluminium and aluminium alloys – Chemical compositionand form of wrought productsPart 3: Chemical compositionEnglish version of DIN EN 573-3
Aluminium and aluminium alloys-Cold drawn rod/bar and tube Part 2 Mechanical properties:DIN EN 754-2-2008
Aluminium and aluminium alloys-Extruded rod/bar,tube and profiles Part 2:Mechanical properties:DIN EN_755-2-2008
Aluminium and aluminium alloyextruded rods/bars, round bars Chemical composition+Mechanical properties：ASTM B211M-2001
Aluminium and aluminium alloy extruded rods/bars,tubes and profles Chemicalcomposition+Mechanical properties：ASTM B221
Wrought Aluminium and aluminium alloyextruded profles Chemical composition+Mechanical properties:JIS H4100-2006
Wrought Aluminium and aluminium alloy extruded rods/bars Chemical composition+Mechanical properties:JIS H4040-2006
Aluminium and aluminium alloy extruded rods/bars Chemical composition：GB/T3190-2008
Aluminium and aluminium alloy extruded rods/bars Mechanical properties：GB/T3191-2010
