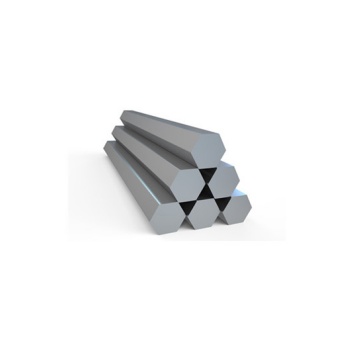

5 Series Aluminum Alloy Hexagonal Bar

Brand : 5052, 5754, 5083, 5056, etc.

Features : good forming performance, corrosion resistance, weldability, medium strength, etc.

Applications :It is used to manufacture aircraft fuel tanks, oil pipes, sheet metal parts for transportation vehicles and ships, instruments, street lamp brackets and rivets, hardware products, electrical-appliance housings, etc. It is the most widely used rust-proof aluminum.

Special services : nationwide sales, free samples, free door-to-door delivery, customizable with drawings and samples

Share to:

Product Details

Aluminum Chemical Composition
Grades	Cu	Si	Fe	Mn	Mg	Zn	Cr	Ti	Pb+Bi	Al
5052	≤0.1	≤0.25	≤0.4	≤0.1	2.2-2.8	≤0.1	0.15-0.35	≤0.05	/	Remainder
5056	≤0.1	≤0.3	≤0.4	0.05-0.2	4.5-5.6	≤0.1	0.05-0.2	≤0.15	/	Remainder
5754	≤0.1	≤0.4	≤0.4	≤0.5	2.6-3.6	≤0.2	≤0.3	≤0.15	/	Remainder
5083	≤0.1	≤0.4	≤0.4	0.4-1.0	4.0-4.9	≤0.2	0.05-0.25	≤0.15	/	Remainder
Aluminum Bar Mechanical Properties
Grades	RmMPa		Rp0,2MPa			A50 mm% min.			HBW Typischer Wert
5052	≥170		≥70			≥15%			≥47
5056	≥110		≥20			≥16%			/
5754	≥180		≥70			≥13%			≥47
5083	≥260		≥100			≥10%			≥70
Aluminum Tube Mechanical Properties
Grades	RmMPa		Rp0,2MPa			A50 mm% min.			HBW Typischer Wert
5052	≥170		≥65			≥17%			≥47
5056	≥110		≥20			≥16%			/
5754	≥180		≥70			≥13%			≥47
5083	≥260		≥100			≥10%			≥70
Spot Regular Status
O、F、H111、H112、H12、H22、H32、H14、H24、H34、H18、H28、H38
Spot Routine Implementation Standards
Aluminium and aluminium alloys – Chemical compositionand form of wrought productsPart 3: Chemical compositionEnglish version of DIN EN 573-3
Aluminium and aluminium alloys-Cold drawn rod/bar and tube Part 2 Mechanical properties:DIN EN 754-2-2008
Aluminium and aluminium alloys-Extruded rod/bar,tube and profiles Part 2:Mechanical properties:DIN EN_755-2-2008
Aluminium and aluminium alloyextruded rods/bars, round bars Chemical composition+Mechanical properties：ASTM B211M-2001
Aluminium and aluminium alloy extruded rods/bars,tubes and profles Chemicalcomposition+Mechanical properties：ASTM B221
Wrought Aluminium and aluminium alloyextruded profles Chemical composition+Mechanical properties:JIS H4100-2006
Wrought Aluminium and aluminium alloy extruded rods/bars Chemical composition+Mechanical properties:JIS H4040-2006
Aluminium and aluminium alloy extruded rods/bars Chemical composition：GB/T3190-2008
Aluminium and aluminium alloy extruded rods/bars Mechanical properties：GB/T3191-2010
