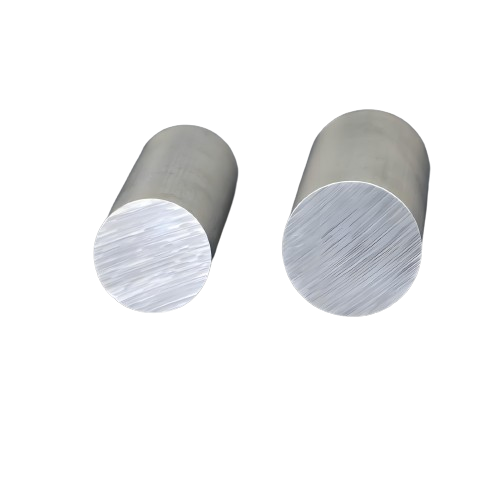

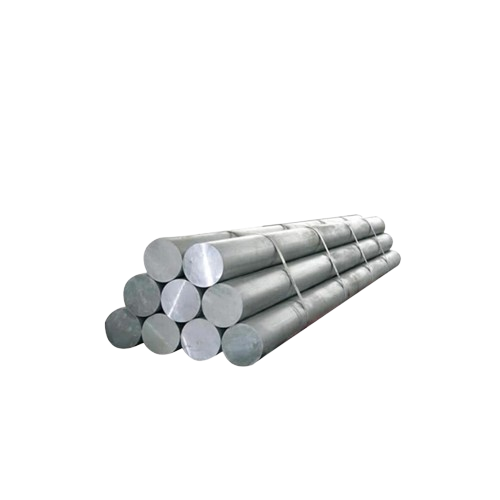

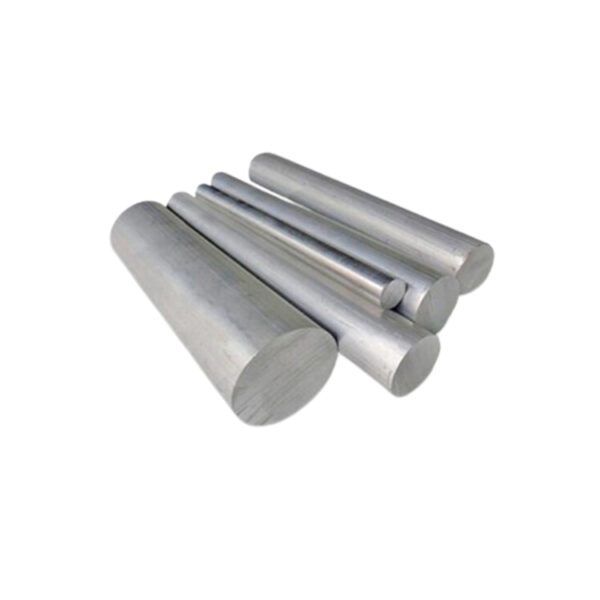

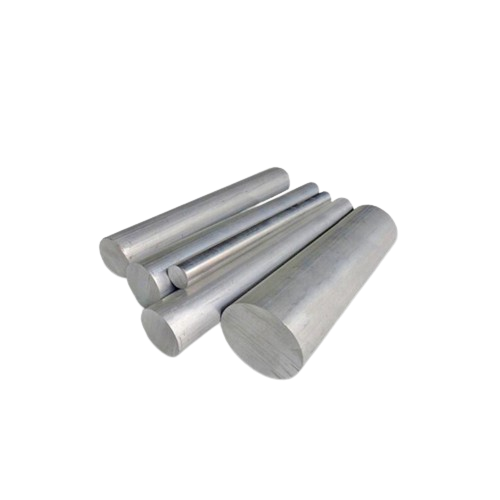

1 Series Aluminum Alloy Bars

Brand: 1060、1070、1050、1100
Features: It can be strengthened by heat treatment, has medium plasticity in annealing, just quenching and hot state, has good spot welding properties, and has a tendency to form intergranular cracks when using gas welding and argon arc welding, etc.

Applications: aircraft structures (skin, frame, rib beam, bulkhead, etc.), aircraft, ships, transportation, rivets, missile components, truck wheels, propeller components, etc.

Special services: nationwide sales, free samples, free door-to-door delivery, customizable with drawings and samples

Share to:

Product Details

Aluminum Chemical Composition
Grades	Cu	Si	Fe	Mn	Mg	Zn	Cr	Ti	Pb+Bi	Al
1050	≤0.05	≤0.25	≤0.4	≤0.05	≤0.05	≤0.05	≤0.03	≤0.03	/	≥99.5
1060	≤0.05	≤0.25	≤0.35	≤0.03	≤0.03	≤0.05	≤0.03	≤0.03	/	≥99.6
1070	≤0.04	≤0.2	≤0.25	≤0.03	≤0.03	≤0.04	≤0.03	≤0.03	/	≥99.7
1100	0.05-0.2	（Si+Fe）≤0.95		≤0.05	≤0.05	≤0.1	≤0.05	≤0.05	/	≥99.0
Aluminum Bar Mechanical Properties
Grades	RmMPa		Rp0,2MPa			A50 mm% min.			HBW Typischer Wert
1050	≥60		≥20			≥23%			≥20
1060	≥60		≥15			≥22%			/
1070	≥60		≥23			≥23%			≥18
1100	≥75		≥20			≥18%			≥20
Spot Regular Status
O、F、H111、H112
Spot Routine Implementation Standards
Aluminium and aluminium alloys – Chemical compositionand form of wrought productsPart 3: Chemical compositionEnglish version of DIN EN 573-3
Aluminium and aluminium alloys-Cold drawn rod/bar and tube Part 2 Mechanical properties:DIN EN 754-2-2008
Aluminium and aluminium alloys-Extruded rod/bar,tube and profiles Part 2:Mechanical properties:DIN EN_755-2-2008
Aluminium and aluminium alloyextruded rods/bars, round bars Chemical composition+Mechanical properties：ASTM B211M-2001
Aluminium and aluminium alloy extruded rods/bars,tubes and profles Chemicalcomposition+Mechanical properties：ASTM B221
Wrought Aluminium and aluminium alloyextruded profles Chemical composition+Mechanical properties:JIS H4100-2006
Wrought Aluminium and aluminium alloy extruded rods/bars Chemical composition+Mechanical properties:JIS H4040-2006
Aluminium and aluminium alloy extruded rods/bars Chemical composition：GB/T3190-2008
Aluminium and aluminium alloy extruded rods/bars Mechanical properties：GB/T3191-2010
